Brush Roll - Printing Application

Brush Roll - Printing Application

I. Product Introduction

1. It can support the grinding of all printed circuit boards, especially for the whole surface treatment of the dry film laminates used in printing, it is widely praised.

2. The brush wheel is developed for the process of filling holes, overflowing glue and removing holes. EC radiation brush selected high shear force of grinding ore, and special glue will be fixed on the ore firmly non-woven fabric fiber, to strengthen the effect.

3. Non-resin immersion, so has superior flexibility, with different surface height fluctuations suitable for a variety of cleaning and micro-grinding purposes. The excellent results are obtained by removing the oxide layer, refining the lines on the surface, nickel plating on the gold finger and research treatment before gold plating.

4. As a general-purpose brush wheel, stable quality, good durability.

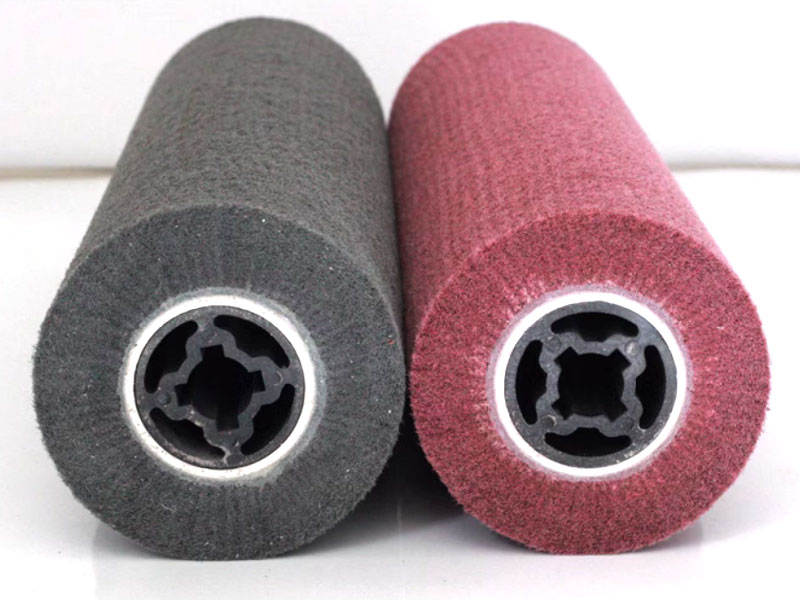

5. Inner tube type: BK (bakelite tube)

II. Parameters

Ⅲ. Product Application

1. Product Features

It can support the grinding of all printed circuit boards, especially for the full surface grinding of dry film pressing plates for printing, which has won a lot of good reviews.

Main Application

● Hair removal

● Pre treatment of dry film

● Pre treatment of green paint

● Surface cleaning

● Copper particle removal

● Removal of oxide layer

● Level and remove copper

● Golden Finger

Product Parameters

2. Product Features

The brush wheel is developed for the process of removing overflow glue from filling holes and removing burrs from drilling holes. The EC radial brush uses abrasive sand with high cutting force and uses special glue to firmly adhere the sand to the non-woven fiber to achieve the effect of strengthening the ability.

Main Application

● Deburring

● Removal of oil film from plugging holes

● Removal of adhesive from pressed steel plates

● Removal of copper particles

● Leveling and copper removal

Product Parameters

3. Product Features

It is a universal brush wheel with stable quality and good durability.

Main Application

● Deburring head

● Dry film pretreatment

● Green paint pretreatment

● Surface cleaning

● Oxide layer removal

Product Parameters

4. Product Features

It does not contain resin leaching, so it has excellent softness and can be used for various cleaning and micro-abrasive purposes with different surface height fluctuations. The removal of the surface oxide layer before the solder mask green paint, the refinement of the surface lines, the nickel plating of the gold finger part and the grinding treatment before gold plating have excellent results.

Main Application

● Gold finger

● Dry film pretreatment

● Green paint pretreatment

● Surface cleaning

● Oxide layer removal

Product Parameters

5. Product Features

This product is developed to improve the brush wheel's cutting force. With the new maintenance and adhesive formula, it can achieve high cutting force and maintain the original life of the product.

Main Application

● Deburring

● Pretreatment of dry film

● Pretreatment of green paint

● Surface cleaning

● Removal of adhesive from pressed steel plate

● Removal of copper particles

● Removal of oxide layer

● Leveling and copper removal

● Removal of oil film from plugging holes

Product Parameters

---
